Detail
|
1 |
Single Screw Plastic Extruder |
1set |
|
2 |
Vacuum Calibration Tank |
1set |
|
3 |
Traction Machine |
1set |
|
4 |
Pipe Cutting Machine |
1set |
|
5 |
Stacker |
1set |
Product application

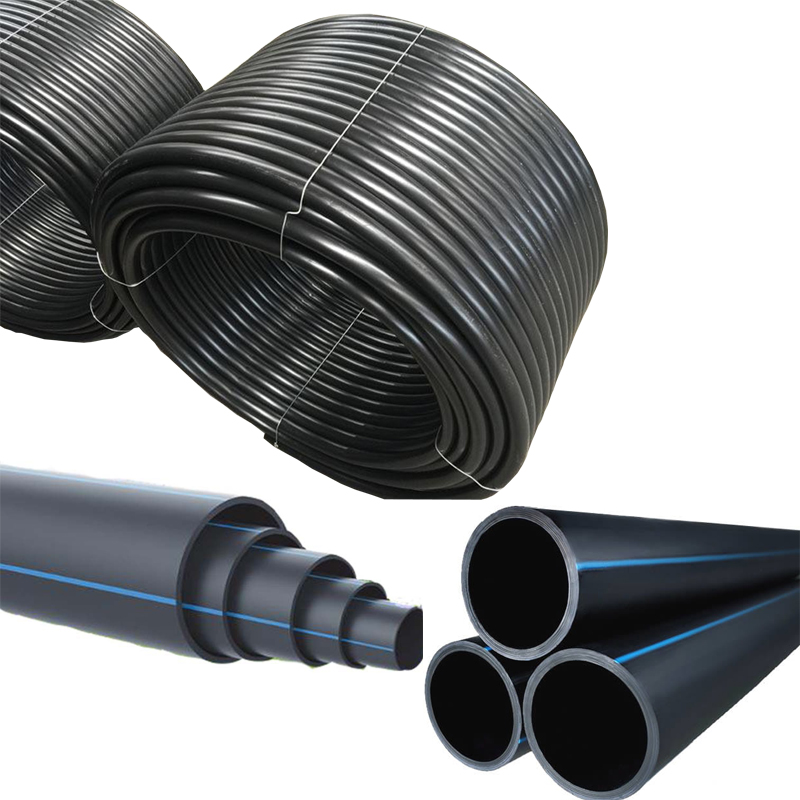

It is mainly used for the production of agricultural water supply and drainage, building water supply and drainage, cable laying,etc. and plastic PVC pipes of various pipe diameters and wall thicknesses. The unit consists of a conical (parallel) twin-screw extruder, a vacuum setting table, a tractor, a cutting machine, a stacking rack, etc. and all of them are high-quality products.The tractor has two-claw, three-claw, four-claw, six-claw, eight-claw and other traction types.
Technical Parameter
| Specifications | |
|
Machine Model |
FCPL |
|
Processed Material |
PVC,PE,HDPE PPR and etc. |
|
Final Product Shape |
Pipe |
|
Output Range(kg/h) |
120-1100 |
|
Diameter of screw |
50mm-130mm(standard) |
|
Voltage Standard |
According to the Voltage of the Customer's Location |
|
Warranty |
12 months from the date of bill of lading |
|
Technical services |
Project design, factory construction, installation and recommendations, commissioning |
|
Diameter scope(mm) |
Conical twin-screw extruder |
Motor(KW) |
Max.Capacity(KG/H) |
Max.Lineal speed(m/min.) |
|
|
20-63 |
SJH50/38 |
55 |
150 |
30 |
|
|
20-110 |
SJH60/38 |
90 |
350 |
20 |
|
|
40-160 |
SJH60/38 |
110 |
400 |
15 |
|
|
75-250 |
SJH75/38 |
132 |
500 |
12 |
|
|
110-315 |
SJH75/38 |
160 |
600 |
12 |
|
|
110-450 |
SJH90/38 |
250 |
850 |
8 |
|
|
315-630 |
SJH90/38 |
280 |
1050 |
4 |
|
|
500-800 |
SJH120/38 |
355 |
1300 |
2 |
|
|
700-1200 |
SJH75/38 |
160/250 |
1450 |
1 |
|
|
1000-1600 |
SJH75/38 |
355/280 |
1900 |
0.6 |
|
Detail Information
1.Single Screw Extruder
The extruder of HDPE pipe line adopt high efficiency screw & barrel, notched feeding cylinder and is equipped with strong water jacket cooler, which greatly improves its transmission capacity and guarantees high-efficiency extrusion. the gearbox is hardening teeth gearbox with self-lubrication system.The motor adopt Siemens standard motor and speed controlled by ABB inverter. The control system adopts Siemens PLC control or button control.
2.Die Mould
Spacious flow channel design to guarantee high extrusion capacity and good melt.
Optimized temperature control and flow channel design, precise melt temperature control.
3.Vacuum calibration tank
The tank body of vacuum calibration tank adopt two chamber structure the vacuum calibration and cooling parts. Both of vacuum tank and spraying cooling tank adopt stainless steel 304.
The excellent vacuum system ensures the precise sizing for pipes, spraying cooling will improve the cooling efficiency, Auto water temperature control system make the machine more intelligent.
4.Haul-off Unit
For the different pipe size and different speed requirement, Far Creative developed kinds of haul-off unit accordingly.The haul-off unit equipped with single motor drive or every caterpillar with separate motor drive, there is the belt type haul-off unit, stable hauling.
For the large diameter pipe, a pipe winch device is equipped to the production line to reduced the waster material.
5.Cuttter
The high-speed, precise designed cutting machine is low in noise. And it is also equipped with strong scrap attracting device to reduce the work of maintenance to the lowest degree.
FAQ
Q: Is your company factory or trade company?A: we are factory, we are engaged in this business for 11 years.
Q: Installation and stuff training available from you?
A: Yes, our engineers will guide machine installation and train your workers.
Q: What is the payment term?
A: The best way for both of us is 30% T/T deposit and 70% T/T balance payment before shipping, since we will test the machine before shipping. Of course, you can choose the way that more convenient (Payment terms: T/T, L/C, Western Union etc.)
Q: How about after service?
A:We can offer 12 months free warranty since the machinery arrived at your factory. We also offer space parts or repair service to our customer anytime and anywhere, we will send our technician to your factory if necessary.
Q: How to reach our factory?
A: It will take 40 minutes from Shanghai International Airport to our factory by car, and we will arrange our driver to pick you to our factory anytime.
